New User's Guide to Configuring Cisco MDS Zones via CLI 24 Aug 2009 Filed in I’m a bit new to the Cisco MDS family of Fibre Channel switches, so I’m sure that this information is “old hat” to the storage pros out there who’ve done it a million times. Hence, I’m labeling this one as a “new user” article.

This video and mp3 song of Nokia 5233 touchscreen video review is published by onlygeek on 31 Jan 2010. Nokia 5233 logo light solution very easy 100 This video and mp3 song of Nokia 5233 logo light solution very easy 100 is published by mobile point on 17 Jul 2017. This video and mp3 song of Hd video converter 360x640 mp4 nokia 5233 is published. Download Hot video song games for the Nokia 5233. These games are free to download and install. English video song free download. You can download free video song for nokia 5233. First i show you info about nokia 5233-Nokia 5233 is the cheaper version of Nokia 5230. The only difference between. Download Mp3 or Mp4 of App Nokia 5233 full songs or album with free, You can download free songs App Nokia 5233 Mp3 here just as a review, if you like it Please Buy.

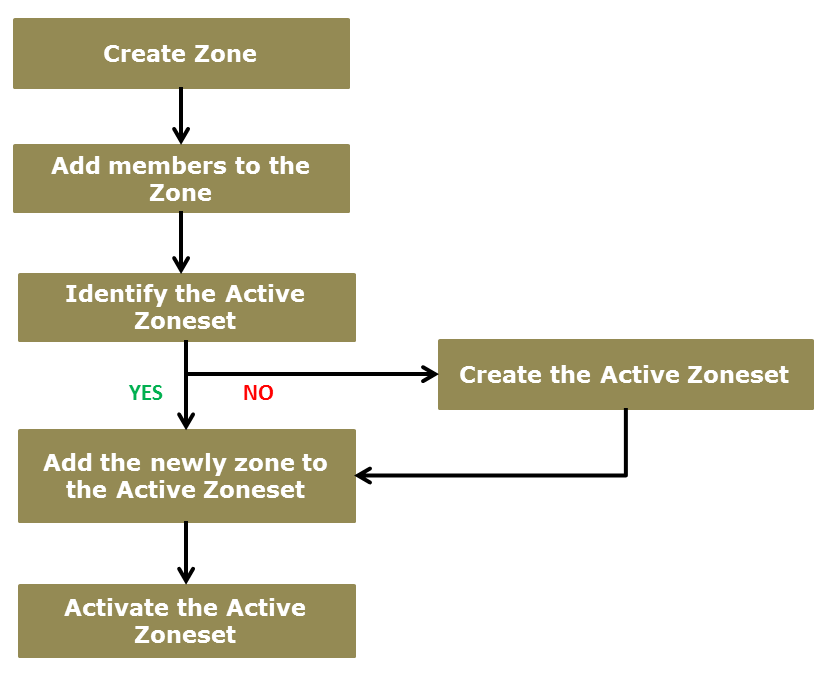

The topic of this post is how to use the command-line interface (CLI) to configure zones on a Cisco MDS 9000 series Fibre Channel switch. I won’t go into great detail on the purpose of zones and that sort of thing; I’m sure it’s been covered in excruciating detail elsewhere. (Knowledgeable readers with any links to that sort of information are encouraged to share those links in the comments.) Instead, I’ll just focus on the mechanics of how it’s done. First, create some aliases for your own use instead of having to remember the Fibre Channel World Wide Port Names (WWPNs). This will make life a lot easier, in my opinion. You create aliases using the fcalias command, like this (where applicable in this command and all other commands in this post, replace _XXX_ with the appropriate VSAN number): switch(config)# fcalias name stor-array-processor-a vsan _XXX_ switch(config-fcalias)# member pwwn _AA:BB:CC:DD:EE:FF:00:11_ switch(config-fclias)# exit switch(config)# Obviously, you’ll replace the fake WWPN I used in the command above with the correct WWPN for that device.

Repeat this process for all the storage processor ports, server HBAs, etc. From this point forward, you can use the alias in place of the WWPN when creating zones. See, isn’t that easier? Next, create zones. Each zone should have a single initiator and (ideally) a single target, although multiple targets is usually acceptable. To create a zone, use the zone and member commands like this: switch(config)# zone name first-new-zone vsan _XXX_ switch(config-zone)# member fcalias stor-array-processor-a switch(config-zone)# member fcalias server-hba switch(config-zone)# exit switch(config)# Since each zone contains only a single initiator, you’ll need to repeat this process for each initiator.

Once you have all the zones created, next create a zoneset. You can create a new zoneset just using the zoneset command, or you can clone an existing zoneset with the zoneset clone command.

In this case, I’ll clone an existing zoneset: switch(config)# zoneset clone existing-zoneset new-zoneset vsan _XXX_ From here, you have a copy of the existing zoneset, which already had all the previously defined zones as members. Add the new zones you’ve defined to the zoneset like this: switch(config)# zoneset new-zoneset vsan _XXX_ switch(config-zoneset)# member first-new-zone switch(config-zoneset)# member second-new-zone switch(config-zoneset)# exit Finally, activate the zoneset: switch(config)# zoneset activate name new-zoneset vsan _XXX_ Then save the configuration with copy runn start and you should be good to go! All you need to do now is configure and present storage from the storage array to the initiators.

But that’s another topic for another post UPDATE: I’ve posted a follow-up to this article on. Metadata and Navigation Previous Post: Next Post: Be social and share this post!
